NG/OK Magazine PCB Unloader

group name: PCB Loader & Un-Loader

Min Order: 1 piece

brand name: SAMTRONIK

model: SMD-1G100L

Nearest port for product export: San Deigo, Bangkok, Singapore, California

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

Export mode: Export through agents

update time: Thu, 21 Nov 2024 17:52:41 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

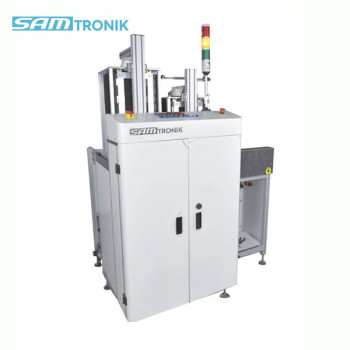

The PCB’s are extracted from the magazines onto the shuttle conveyor using puller mechanism.

Detailed

The PCB’s are extracted from the magazines onto the shuttle conveyor using puller mechanism. Shuttle conveyor moves sideways between magazines and downstream machine.

PCB Loader and unloader

Features:

Magazines are manually placed on the platform and clamped in position.
Controlled by Omron PLC.
Tailor made to the magazine of your choice.
Regulated pressure on the integrated pull cylinder.
Ball screw driven positioning of shuttle conveyor.
Towerlight display for machine status.
Selectable pitch settings.

Technique Parameter

Description	Used for loading&unloading PCBs from the magazine
Amount of magazine	Upper conveyor:1;Lower conveyor:1
Time feed PCB	Approx. 6 seconds or specify
Magazine change time	Approx. 30 seconds or specify
Indexing pitch	10,20,30,40 mm or specify
Power source	230VAC 1ph 100VA max (option 100VAC)
Air pressure&Consume	4-6 bar,10ltr/min max
PCB Thickness	0.6 mm min

Specification Parameter

Model	Size	Dimension(LWH)(mm)	Effective PCB Size(mm)	Approximate Weight(kg)	Rack Size(LWH)(mm)
SMD-1G100M	M	145014501250	5050-330250	240	335320560
SMD-1G100L	L	165015801250	5050-445330	285	460400560
SMD-1G100LL	LL	198017201250	5050-530390	320	535460570
SMD-1G100XL	XL	198020501250	5050-530460	345	535530570
