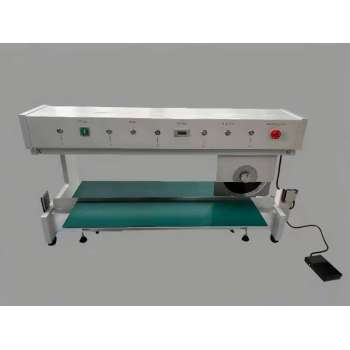

SM-2008B PCB Separator
- group name
- Motorized Driven PCB Separator
- Min Order
- 1 piece
- brand name
- SAMTRONIK
- model
- SM-2008B
- Nearest port for product export
- San Deigo, Bangkok, Singapore, California
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
- Export mode
- Export through agents
- update time
- Fri, 31 Jan 2025 02:30:52 GMT
Paramtents
PCB thickness 0.8-3.2mm
The length of linear blade 450mm
Remaining PCB thickness Typical: 1 /3 of Dim.A Max: 0.8mm
Depth of scoring Min. 0.25mm
I ncrease in external dimensions after separation 0.1 -0.2mm
The max component height of the PCB edge 70mm
The diameter of upper circular blade 185mm
The length of lower linear blade 600mm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
SM-2008B separates both small and large PCBs fast and economically. To optimize operation,the separation length can be programmed.
Safe operation
The PCB is placed with its pre-scored groove onto the linear blade,when the foot switch is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.Recommended pre-scored grooves.The pre-scored grooves can be interrupted by any number of cut outs.
Features:
SM-2008 separates both small and large PCBs fast and economically. To optimize operation, the separation length can be programmed,Safe operation . The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units. The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.Recommended pre-scored grooves
The pre-scored grooves can be interrupted by any number of cutouts. If components project above the groove,the linear blade needs to be cut out, in such a case, contact us.
• Programmable cutting lengths ranging to 460mm, eliminating time-consuming unnecessary board travel. (Cut length of up to 600mm also available)
• Motorized circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.
• Programmable to exact cutting length required.
• Will depanel PCBs with components 1 mm from the score line.
• Quick-lock design for easy circular blade setup to any PCB thickness.
• Hardened tooled steel long-life blades
• Large processing table, which can be angled to permit processed boards to fall away.
• For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
• Four separating speeds available – adjustable by front rotary knob
