Infrared Luminous Furnace-0.8M

group name: Infrared Luminous Furnace-0.8M

Min Order: 1 piece

brand name: SAMTRONIK

model: SM-CSUV330

Nearest port for product export: San Deigo, Bangkok, Singapore, California

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

Export mode: Export through agents

update time: Thu, 25 Dec 2025 21:19:16 GMT

contact supplier

Packging & Delivery

800cm x700cm x1222cm
Min Order1 piece

Briefing

1，Infrared Luminous Furnace; 2, Infrared curing oven; 3, Infrared curing oven for Coating line;

Detailed

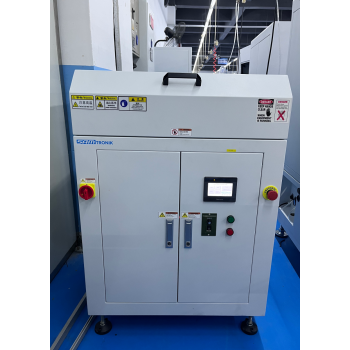

Product name: Infrared Luminous Furnace-0.8M

Model: SM-CSUV330(Front fix rail, direction: left to right, with HMI) （customized)

A brief introduction ：

An infrared curing oven is a machine that uses infrared radiation to quickly dry, bake, or cure coatings, inks, adhesives, or other materials on surfaces. It works by emitting electromagnetic waves that are absorbed by the target material, generating heat directly within it. This allows for fast, uniform, and energy-efficient curing compared to conventional hot air ovens. It is commonly used in industrial manufacturing processes, such as in automotive, printing, and electronics assembly lines.

Description:

1. Adjustable conveyor speed;

2, Conveyor running/ stop timer;

3, Temperature: 80-120 degree celcius;

4, Conveyor width: 50mm-330mm(Adjustable);

5, Each coating pallet weight: 1.5kg-2.0kg

Technique Parameter :

Transmission height ：910mm±30mm

Conveyor：Chain

Interface：SMEMA

Transmission direction: left to right

Transmission speed： 0.5~15M/minute(adjustable)

Fixed guide rail： Front part of machine

Transmission composition ：1-segment

Width adjustment mode ：Auto adjustment

PCB size：（L*W) Mini: 50*50mm Max: 460*330mm

PCB thickness： 0.6~4.0mm

PCB component height ：±30mm

PCB weight： ≤5.0KG

Power Supply ：220V 50/60HZ ±10%

Power supply system ：L1+N+PE

Power ：0.06KW

Power plug type： Indonesia standard

Machine size : L*W*H 800*700*1222mm

Machine weight :200kg

More photos:
